Clarinet-TTCN ISDN France-VN4 ETS
Standard Features
Standard Reference
Clarinet ETS
F4XUB-VN4
- Protocol: ITU-T Q931 and ETSI standards,
France-Telecom VN4 specifications ("Règles Techniques Particulières"
) define protocol for
ISDN Equipment
- IUT: ISDN BRI User Equipment for Network Layer
- ATS: F4XUB - ACACIA has signed the ATS use agreement with FT (CNET license
n°1165)
Clarinet ETS
F4XUP-VN4
- Protocol: ITU-T Q931 and ETSI standards,
France-Telecom VN4 specifications ("Règles Techniques Particulières"
) define protocol for
ISDN Equipment
- IUT: ISDN BRI User Equipment for Network Layer
- ATS: F4XUP - ACACIA has signed the ATS use agreement with FT (CNET license
n°1165)
Description
- ETS result from a compilation of the ATS (Abstract Test Suites)
source, included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN
compiler.
- The ETS packages include the executable files of ETS and
the templates of Clarinet file for a quick operation (Profiles,
filters, Test cases list, PICS/PIXIT).
|
Clarinet ETS
|
TTCN ATS
|
Number of
Test Cases
|
No. of
Interfaces
|
| Clarinet ETS F4XUB |
FT |
37
|
1 |
| Clarinet ETS F4XUP |
FT |
36 |
1 |
Host Specifications
- USB interface + Windows 98 or Windows 2000
- SCSI2 interface + Windows 95 or Windows NT 4.0
Clarinet specification
- To run an ETS, only the standard Clarinet RUN-TIME package is
required
- The Clarinet RUN-TIME version should be at least the 8.3 version
- The Clarinet-profiles are used in User-Program behavior
Interface Under Test Specification
- The ETS can be run on different types of interfaces supported by
CLARINET:
Manager Options

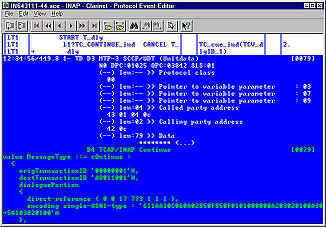

- The features which generate and display a full TTCN-GR trace are
included in the standard Clarinet RUN-TIME
- Access from the Clarinet profile-editor allows to manage directly
both configuration files:
- Test Cases list
- PICS/PIXIT parameters.
Filter Options
- The filter includes TTCN functions to select the TTCN-GR trace
events
- Programmable color attribute by type of events (Test-step, Test
Case...)
ETS
- All the ETS are independent software packages delivered on the
single CD-ROM Clarinet ETS
- The running of the software is controlled by the Clarinet
security-key connected on parallel port
- The ETS installation and execution are subject to the general
conditions of the ACACIA software use license.
ATS
- The ATS reference (mp file name) and ATS modifications are provided
by Acacia in each package.
- The TTCN-GR test documentation corresponding to the ATS is available
from France-Telecom.
Reference
|
Product Designation
|
8557
|
Clarinet ETS-ISDN F4XUB - RTPB-VN4 |
8558
|
Clarinet ETS-ISDN F4XUP -
RTPP-VN4 |
|
