Clarinet-TTCN ISDN Network side ETS

Standard features

ETS products
Clarinet-System configuration
Packaging
Ordering information

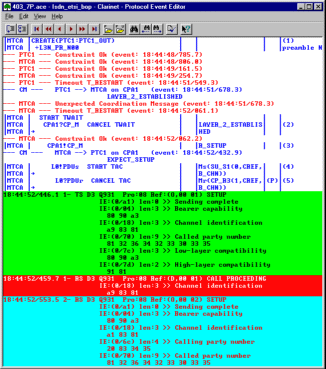

Click to enlarge

ISDN Network side ETS products

Standard reference

Clarinet ETS 300 402_7

  • Protocol: ITU-T Q921 standards defines protocol for ISDN Equipement
  • IUT: ISDN BRI and PRI User Equipment for Data Link Layer
  • ATS:  ETSI standard ETS 300 402_7

Clarinet ETS 300 403_7

  • Protocol: ITU-T Q931 standard defines protocol for ISDN Equipement
  • IUT: ISDN BRI and PRI User Equipment for Basic Call
  • ATS:  ETSI standard ETS 300 403_7

Clarinet ETS ISDN supplementary services

  • Protocol:  a series of ETSI standards defines supplementary services protocol for : ISDN Equipement
  • IUT: ISDN BRI and PRI Network Equipment for Basic Call
  • ATS:  a series of ETSI standards ETS 300xxx-6



Description

  • These ETS result from compilation of the ATS (Abstract Test Suites) source included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
  • The ETS packages includes the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Testcases list, PICS/PIXIT).

Clarinet ETS

Number of TestCases
Total Interfaces Required
. 1 2 3 4
Clarinet ETS 300 402-7: ISDN Data Link Layer 565 . . . .
Clarinet ETS 300 403-7: ISDN Basic Call Network side 652 77 508 67 .
Clarinet ETS 300 188-6: ISDN 3PTY Network side 45 . . 44 1
Clarinet ETS 300 182-6: ISDN AOC Network side 87 80 7 . .
Clarinet ETS 300 359-6: ISDN CCBS Network side 120 120 . .
Clarinet ETS 300 065-6: ISDN CCNR Network side 71 . 71 . .
Clarinet ETS 300 207-6: ISDN CDIV Network side 336 172 . 158 6
Clarinet ETS 300 092-6: ISDN CLIP Network side 26 6 20 . .
Clarinet ETS 300 093-6: ISDN CLIR Network side 5 . 5 . .
Clarinet ETS 300 097-6: ISDN COLP Network side 24 6 18 . .
Clarinet ETS 300 098-6: ISDN COLR Network side 5 . 5 . .
Clarinet ETS 300 185-6: ISDN CONF Network side 64 6 44 14 .
Clarinet ETS 300 138-6: ISDN CUG Network side 95 . 95 . .
Clarinet ETS 300 058-6: ISDN CW Network side 17 . . 17 .
Clarinet ETS 300 064-6: ISDN DDI Network side 4 . 4 . .
Clarinet ETS 300 369-6: ISDN ECT Network side 195 . . 158 37
Clarinet ETS 300 141-6: ISDN Hold Network side 43 4 39 . .
Clarinet ETS 300 130-6: ISDN MCID Network side 20 . 20 . .
Clarinet ETS 300 052-6: ISDN MSN Network side 3 . 3 . .
Clarinet ETS 300 745-6: ISDN MWI Network side 67 44 28 . .
Clarinet ETS 300 061-6: ISDN SUB Network side 4 . 4 . .
Clarinet ETS 300 286-6: ISDN UUS Network side 252 . 252 . .
Clarinet ETS 1_060_6: VPN Basic call Network side 562 562 . . .

Clarinet-System configuration

Host specifications

  • USB interface + Windows 98 or Windows 2000
  • SCSI2  interface + Windows 95 or Windows NT 4.0

Clarinet specification

  • To run an ETS, only the standard Clarinet RUN-TIME package is required
  • The Clarinet RUN-TIME version should be at least the 8.3 version
  • The Clarinet-profiles are used in User-Program behaviour

Interface Under Test Specification

  • The ETS can be run on different type of interfaces supported by CLARINET:
    • E1
    • T1
    • U
    • S-T

Manager options

  • The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
  • An access from the Clarinet profile-editor allows to manage directly both configuration files:
    • TestCases list
    • PICS/PIXIT parameters.

Filter options

  • The filter includes TTCN functions to select the TTCN-GR trace events
  • programmable color attribute by type of events (Test-step, TestCase...)

Packaging

ETS

  • All the ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
  • The running of the software is controlled by the Clarinet security-key connected on parallel port
  • The ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

  • The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
  • The TTCN-GR test documentation corresponding to the ATS is available from standard organization.

Ordering information

Reference

Product Designation

8691

 Clarinet ETS 300402-7  ISDN-Network Data Link Layer

8692

 Clarinet ETS 300403-7  ISDN-Network Basic Call Control

8757

 Clarinet ETS 300188-6  ISDN-Network 3PTY

8693

 Clarinet ETS 300182-6  ISDN-Network AOC

8764

 Clarinet ETS 300359-6  ISDN-Network CCBS

8763

 Clarinet ETS 300065-6  ISDN-Network CCNR

8759

 Clarinet ETS 300207-6  ISDN-Network CDIV

8751

 Clarinet ETS 300092-6  ISDN-Network CLIP

8752

 Clarinet ETS 300093-6  ISDN-Network CLIR

8754

 Clarinet ETS 300097-6  ISDN-Network COLP

8755

 Clarinet ETS 300098-6  ISDN-Network COLR

8760

 Clarinet ETS 300185-6  ISDN-Network CONF

8756

 Clarinet ETS 300138-6  ISDN-Network CUG

8696

 Clarinet ETS 300058-6  ISDN-Network CW

8698

 Clarinet ETS 300064-6  ISDN-Network DDI

8761

 Clarinet ETS 300369-6  ISDN-Network ECT

8694

 Clarinet ETS 300141-6  ISDN-Network Hold

8753

 Clarinet ETS 300130-6  ISDN-Network MCID

8695

 Clarinet ETS 300052-6  ISDN-Network MSN

8762

 Clarinet ETS 300745-6  ISDN-Network MWI

8697

 Clarinet ETS 300061-6  ISDN-Network SUB

8758

 Clarinet ETS 300286-6  ISDN-Network UUS

8745

 Clarinet ETS 301060-6  VPN-Network-Basic Call

* Each ETS can be run on BRI or PRI (PICS/PIXIT parameter)
