Clarinet-TTCN ISDN TBR ETS

Standard Features

ISDN ETS products Clarinet-System configuration Packaging Ordering information

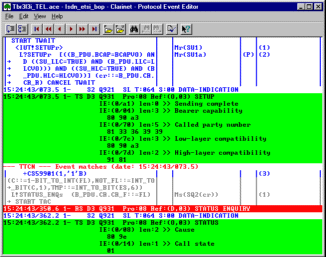

Click to enlarge

ISDN TBR ETS products

Standard Reference

Clarinet ETS TBR3L2 / TBR33L2

• Protocol: ITU-T Q921 standards define protocol for ISDN Equipment
• IUT: ISDN BRI User Equipment for Data Link Layer
• ATS:  ETSI standard TBR3 / TBR33

Clarinet ETS TBR3L3 / TBR33 L3

• Protocol: ITU-T Q931 standard defines protocol for ISDN Equipment
• IUT: ISDN BRI  User Equipment for Basic Call
• ATS:  ETSI standard TBR3 / TBR33

Clarinet ETS TBR4L2 / TBR34L2

• Protocol: ITU-T Q921 standards define protocol for ISDN Equipment
• IUT: ISDN PRI User Equipment for Data Link Layer
• ATS:  ETSI standard ETS TBR4 / TBR34

Clarinet ETS TBR4L3 / TBR34 L3

• Protocol: ITU-T Q931 standards define protocol for ISDN Equipment
• IUT: ISDN PRI  User Equipment for Basic Call
• ATS:  ETSI standard ETS TBR4 / TBR34

Clarinet ETS TBR8

• Protocol: ITU-T Q931 standards define protocol for ISDN Equipment
• IUT: ISDN BRI User Equipment for Basic Call
• ATS: ETSI standard ETS TBR8

Description

• These ETS result a from compilation of the ATS (Abstract Test Suites) source included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
• The  ETS packages include the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Testcases list, PICS/PIXIT).
• All the Advisory notes from ITAAB specifying TTCN ATS modifications of  TBR3/TBR4 and TBR33/TBR34 are included in independent ETS (delivered as an additional package).

Clarinet-System Configuration

Host Specifications

• USB interface + Windows 98 or Windows 2000
• SCSI2  interface + Windows 95 or Windows NT 4.0

Clarinet Specification

• To run an ETS, only the standard Clarinet RUN-TIME package is required
• The Clarinet RUN-TIME version should be at least the 8.3 version
• The Clarinet-profiles are used in User-Program behavior

Interface Under Test Specification

• ETS can be run on different types of interfaces supported by CLARINET:
  • E1
  • T1
  • U
  • S-T

Manager Options

• The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
• Access from the Clarinet profile-editor allows to directly manage both configuration files:
  • Test Cases list
  • PICS/PIXIT parameters.

Filter Options

• The filter includes TTCN functions to select the TTCN-GR trace events
• Programmable color attribute by type of events (Test-step, Test Case...)

Packaging

ETS

• All ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
• The running of the software is controlled by the Clarinet security-key connected on parallel port
• ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

• The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
• The TTCN-GR test documentation corresponding to the ATS is available from standard organization.

Ordering Information

---
