Clarinet-TTCN ISDN User side ETS

Standard Features

ISDN ETS products
Clarinet-System configuration
Packaging
Ordering information


Click to enlarge

ISDN User Side ETS Products

Standard Reference

Clarinet ETS 300 402_7

  • Protocol: ITU-T Q921 standards define protocols for ISDN Equipment
  • IUT: ISDN BRI and PRI User Equipment for Data Link Layer
  • ATS:  ETSI standard ETS 300 402_7

Clarinet ETS 300 403_5

  • Protocol: ITU-T Q931 standard defines protocol for ISDN Equipment
  • IUT: ISDN BRI and PRI User Equipment for Basic Call
  • ATS:  ETSI standard ETS 300 403_5

Clarinet ETS ISDN Supplementary Services

  • Protocol:  a series of ETSI standards defines supplementary services protocol for : ISDN Equipment
  • IUT: ISDN BRI and PRI User Equipment for Basic Call
  • ATS:  a series of ETSI standards



Description

  • These ETS result from a compilation of the ATS (Abstract Test Suites) source included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
  • The ETS packages include the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Test cases list, PICS/PIXIT).

Clarinet ETS

Number of
Test Cases

No. of
Interfaces
Clarinet ETS 300 402-7: ISDN Data Link Layer 565 1
Clarinet ETS 300 403-5: ISDN Basic Call User side 689 1
Clarinet ETS 300 188-4: ISDN 3PTY User side 25 1
Clarinet ETS 300 182-4: ISDN AOC User side 154 1
Clarinet ETS 300 359-4: ISDN CCBS User side 100 1
Clarinet ETS 300 207-4: ISDN CDIV User side 266 1
Clarinet ETS 300 092-4b: ISDN CLIP User side 2 1
Clarinet ETS 300 092-4p: ISDN CLIP User side 2 1
Clarinet ETS 300 093-4b: ISDN CLIR User side 2 1
Clarinet ETS 300 093-4p: ISDN CLIR User side 2 1
Clarinet ETS 300 097-4bm: ISDN COLP User side 2 1
Clarinet ETS 300 097-4pm: ISDN COLP User side 2 1
Clarinet ETS 300 098-4b: ISDN COLR User side 2 1
Clarinet ETS 300 098-4p: ISDN COLR User side 2 1
Clarinet ETS 300 185-4: ISDN CONF User side 74 1
Clarinet ETS 300 138-4b: ISDN CUG User side 11 1
Clarinet ETS 300 138-4p: ISDN CUG User side 11 1
Clarinet ETS 300 058-4b: ISDN CW User side 14 1
Clarinet ETS 300 058-4 p: ISDN CW User side 14 1
Clarinet ETS 300 064-4b: ISDN DDI User side 17 1
Clarinet ETS 300 064-4p: ISDN DDI User side 17 1
Clarinet ETS 300 369-4: ISDN ECT User side 107 1
Clarinet ETS 300 141-4: ISDN HOLD User side 66 1
Clarinet ETS 300 130-4: ISDN MCID User side 12 1
Clarinet ETS 300 052-4b: ISDN MSN User side 16 1
Clarinet ETS 300 052-4p: ISDN MSN User side 16 1
Clarinet ETS 300 745-4: ISDN MWI User side 68 1
Clarinet ETS 300 061-4b: ISDN SUB User side 8 1
Clarinet ETS 300 061-4p: ISDN SUB User side 8 1
Clarinet ETS 300 286-4: ISDN UUS User side 156 1
Clarinet ETS 1_060_6: VPN Basic call Network 562 1





Clarinet-System Configuration

Host Specifications

  • USB interface + Windows 98 or Windows 2000
  • SCSI2  interface + Windows 95 or Windows NT 4.0

Clarinet Specification

  • To run an ETS, only the standard Clarinet RUN-TIME package is required
  • The Clarinet RUN-TIME version should be at least the 8.3 version
  • The Clarinet-profiles are used in User-Program behavior

Interface Under Test Specification

  • The ETS can run on different types of interfaces supported by CLARINET:
    • E1
    • T1
    • U
    • S-T

Manager Options

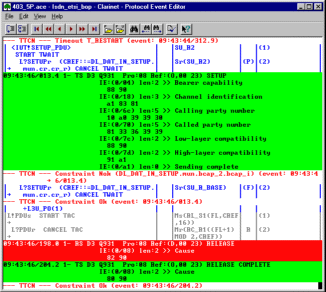

  • The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
  • Access from the Clarinet profile-editor allows to manage directly both configuration files:
    • Test Cases list
    • PICS/PIXIT parameters.

Filter Options

  • Filter includes TTCN functions to select the TTCN-GR trace events
  • Programmable color attribute by type of events (Test-step, TestCase...)

Packaging

ETS

  • All the ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
  • The running of the software is controlled by the Clarinet security-key connected on parallel port
  • The ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

  • The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
  • The TTCN-GR test documentation corresponding to the ATS is available from standard organization.

Ordering Information

Reference

Product Designation

8691

 Clarinet ETS 300402-7 (1x) ISDN-User Data Link Layer

8770

 Clarinet ETS 300403-5 (1x) ISDN-User Basic Call Control

8540

 Clarinet ETS 300188-4 (1x) ISDN-User 3PTY

8774

 Clarinet ETS 300182-4 (1x) ISDN-User AOC

8542

 Clarinet ETS 300359-4 (1x) ISDN-User CCBS

8775

 Clarinet ETS 300207-4 (1x) ISDN-User CDIV

8536

 Clarinet ETS 300092-4 (2x) ISDN-User CLIP

8537

 Clarinet ETS 300093-4 (2x) ISDN-User CLIR

8538

 Clarinet ETS 300097-4 (2x) ISDN-User COLP

8539

 Clarinet ETS 300098-4 (2x) ISDN-User COLR

8776

 Clarinet ETS 300185-4 (1x) ISDN-User CONF

8541

 Clarinet ETS 300138-4 (2x) ISDN-User CUG

8532

 Clarinet ETS 300058-4 (2x) ISDN-User CW

8533

 Clarinet ETS 300064-4 (2x) ISDN-User DDI

8777

 Clarinet ETS 300369-4 (1x) ISDN-User ECT

8545

 Clarinet ETS 300141-4 (1x) ISDN-User Hold

8534

 Clarinet ETS 300130-4 (1x) ISDN-User MCID

8531

 Clarinet ETS 300052-4 (2x) ISDN-User MSN

8778

 Clarinet ETS 300745-4 (1x) ISDN-User MWI

8535

 Clarinet ETS 300061-4 (2x) ISDN-User SUB

8543

 Clarinet ETS 300286-4 (2x) ISDN-User UUS

8745

 Clarinet ETS 301060-6 (2x) ISDN-User UUS

* (1x): the same ETS can be run on BRI or PRI (PICS/PIXIT parameter)
* (2x): one ETS is dedicated to BRI and another one to PRI
