Clarinet-TTCN SS7 ETS

Standard Features

ETS products
Clarinet-System configuration
Packaging
Ordering information

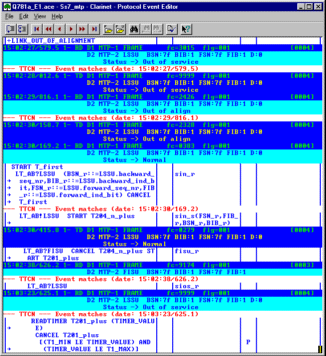

Click to enlarge

SS7 ETS Products

Standard Reference

Clarinet ETS Q781A: SS7-MTP2

  • Protocol: ITU-T Q703 standard defines protocol for Signaling System No. 7 Message transfer part
  • IUT: SS7 Signaling Point - MTP2-ITU
  • ATS:  Based on ITU-T Q781 (07/96) test descriptions.

Clarinet ETS Q781A ANSI: SS7-MTP2-ANSI

  • Protocol: ITU-T Q703 standard and Telcordia GR-246 documentation define protocol for Signaling System No. 7 Message transfer part
  • IUT: SS7 Signaling Point - MTP2-ANSI
  • ATS:  Based on ITU-T Q781 (07/96) test descriptions.

Clarinet ETS Q782A: SS7-MTP3

  • Protocol: ITU-T Q703 standard defines protocol for Signalling System No. 7 Message transfer part
  • IUT: SS7 Signalling Point - MTP3
  • ATS:  Based on ITU-T Q782 (07/96) test descriptions.

Clarinet ETS 301 009-3 SS7-SCCP

  • Protocol: ETSI ETS 300009-3 standard defines protocol for Signaling System No. 7 Signaling Connection Control Part
  • IUT: SS7 Signaling Point - SCCP
  • ATS:  ETSI standard ETS 300 009-3.

Clarinet ETS 300 356-33: SS7-ISUP-V2 Basic Call

  • Protocol: ITU-T Q.784.2 (1997) standard defines protocol for Signaling System No. 7 ISDN User Part (ISUP) version 2 for the international interface;
  • IUT: SS7 Signaling Point - ISUP V2
  • ATS:  ETSI 300 356 Part 33-Version 2: Abstract Test Suite (ATS) and PIXIT proforma specification for basic services [ITU-T Recommendation Q.784.2 (1997), clauses 2 to 5 and annexes B to C, modified]

Clarinet ETS 300 356-33: SS7-ISUP-V3 Basic Call

  • Protocol: ITU-T Q.784.2 (1997) standard defines protocol for Signaling System No. 7 ISDN User Part (ISUP) version 2 for the international interface;
  • IUT: SS7 Signaling Point - ISUP V3
  • ATS:  ETSI 300 356 Part 33-Version 3: Abstract Test Suite (ATS) and PIXIT proforma specification for basic services [ITU-T Recommendation Q.784.2 (1997), clauses 2 to 5 and annexes B to C, modified]

Clarinet ETS 300 356-36: SS7-ISUP-V2 Supplementary Services

  • Protocol:  standard defines protocol for Signaling System No. 7 Message transfer part
  • IUT: SS7 Signaling Point - ISUP V2
  • ATS:  ETSI 300 356 Part 36-Version 2: Abstract Test Suite (ATS) and PIXIT perform a specification for supplementary services.

Clarinet ETS 300 356-36: SS7-ISUP-V3 Supplementary Services

  • Protocol:  standard defines protocol for Signaling System No. 7 Message transfer part
  • IUT: SS7 Signaling Point - ISUP V3
  • ATS:  ETSI 300 356 Part 36-Version 3: Abstract Test Suite (ATS) and PIXIT perform a specification for supplementary services.

Clarinet ETS 300 287-3: SS7-TCAP

  • Protocol:  ITU-T Q.771 to Q.775 (1993, modified) standards defines protocol for Signaling System No. 7 Transaction Capabilities (TC);
  • IUT: SS7 Signaling Point - ITCAP
  • ATS: ETS 300 287 part 1: : Protocol specification [ITU-T Recommendations Q.771 to Q.775 (1993), modified]
  • ETSI standard ETS 300 287 part 4 covers the test of TCAP protocol. The ATS defines the protocol tests in accordance with ETS 300 287 Integrated Services Digital Network (ISDN); Signaling System No.7; Transaction Capabilities (TC) version 2; TNAP.

Clarinet ETS 300 374-4: SS7-INAP-CS1

  • Protocol:  ETSI standards define protocol for Intelligent Network (IN); Capability Set 1 (CS1); Core Intelligent Network Application Protocol (INAP); Service Switching Point and Intelligent Peripheral for Service Switching Function (SSF) and Specialized Resource Function (SRF)
  • IUT: SS7 Signaling Point - INAP-CS1
  • ATS: ETSI standard ETS 300 374-4 covers the test of INAP-CS1 protocol. The ATS defines the protocol tests in accordance with ETS 300 374 part 1: Intelligent Network (IN); Intelligent Network Capability Set 1 (CS1); Core Intelligent Network Application Protocol (INAP).

Description

  • These ETS result from a compilation of the ATS (Abstract Test Suites) source included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
  • The SS7  ETS packages include the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Test cases list, PICS/PIXIT).

Clarinet ETS

TTCN Configuration

Number of
Test Cases

No. of
Interfaces

ETS Q781A: SS7-MTP2

145

1
ETS Q781A ANSI: SS7-MTP2-ANSI

146

1
ETS Q782A ANSI: SS7-MTP3

174

1-4
ETS 301 009-3 SS7-SCCP Config 1 166 1
Config 2 81 2
Total 247
ETS 300 356-33: SS7-ISUP-V2 BC 267 2
ETS 300 356-33: SS7-ISUP-V3 BC 333 2
ETS 300 356-36: SS7-ISUP
V2 Supplementary Services
Config 1 243 1-2
Config 2 227 2
Total 470
ETS 300 356-36: SS7-ISUP
V3 Supplementary Services
  491 1-2
ETS 300 287-3: SS7-TCAP



357

1
ETS 300 374-4: SS7-INAP-CS1



185

1

Clarinet-System Configuration

Host Specifications

  • USB interface + Windows 98 or Windows 2000
  • SCSI2  interface + Windows 95 or Windows NT 4.0

Clarinet Specification

  • To run an ETS, only the standard Clarinet RUN-TIME package is required
  • The Clarinet RUN-TIME version should be at least the 8.3 version
  • The Clarinet-profiles are used in User-Program behavior

Interface Under Test Specification

  • ETS can un on different type of interfaces supported by CLARINET:
    • E1
    • T1

Manager Options

  • The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
  • Access from the Clarinet profile-editor allows to manage directly both configuration files:
    • Test Cases list
    • PICS/PIXIT parameters.

Filter Options

  • The filter includes TTCN functions to select the TTCN-GR trace events
  • Programmable color attribute by type of events (Test-step, Test Case...)

Packaging

ETS

  • All ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
  • The running of the software is controlled by the Clarinet security-key connected on parallel port
  • The ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

  • The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
  • The TTCN-GR test documentation corresponding to the ATS is available from standard organization.

Ordering Information

Reference

Product Designation

8747

Clarinet ETS Q781A: SS7 MTP2

8750

Clarinet ETS Q781A ANSI: SS7 MTP2-ANSI

8749

Clarinet ETS Q782A: SS7 MTP3

8742

Clarinet ETS 300356-33: SS7 ISUP-V2-Basic Call

8733

Clarinet ETS 300356-33: SS7 ISUP-V3-Basic Call

8743

Clarinet ETS 300356-36: SS7 ISUP-V2-Supp.Services

8734

Clarinet ETS 300356-36: SS7 ISUP-V3-Supp.Services

8746

Clarinet ETS 300009-3: SS7 SCPP

8748

Clarinet ETS 300287-3: SS7 TCAP

8741

Clarinet ETS 300374-4: SS7 INAP-CS1
