Clarinet-TTCN VOIP ETS

Standard Features

VOIP ETS products
Clarinet-System configuration
Packaging
Ordering information

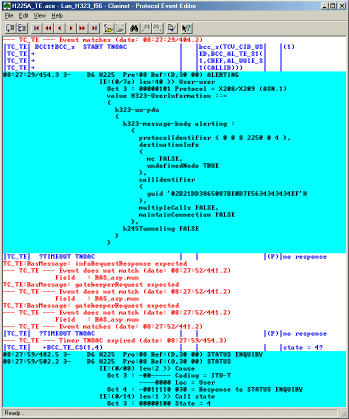

Click to enlarge

VOIP ETS Products

Standard Reference

Clarinet ETS H225a: VOIP H225
  • Protocol: the ITU-T H323 and H225 define VOIP call signaling protocol for  "Packet based multimedia communication systems".
  • IUT: H323/H225 Terminal, gatekeeper and gateway
  • ATS:  Based on first ETSI Drafts TS 101 804-2 and 101 804-3 rewritten by ACACIA
Clarinet ETS RFC3261a: VOIP SIP
  • Protocol: the RFC3261 defines "Session Initiation Protocol".
  • IUT: SIP UA and Proxy
  • ATS:  Based on first ETSI Drafts TS 102 027-1 V2.12 rewritten by ACACIA
Clarinet ETS 889-3a: VOIP H248-Megaco
  • Protocol: the ITU-T H248  define Gateway control protocol .
  • IUT: H248
  • ATS:  Based on ETSI  TS 101 889-3

Description

  • These ETS result from a compilation of the ATS (Abstract Test Suites) source included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
  • The ETS packages include the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Test cases list, PICS/PIXIT).

Clarinet ETS

IUT

TTCN Configuration

Number of
Test Cases

No. of
Interfaces

ETS H225a: VOIP H225 TE Conf_TE 177 1 LAN
Conf_AGKTE 11 1 LAN
GK Conf_GK 40 1 LAN
Conf_PTCGK 34 1 LAN
Conf_BCC 112 1 LAN
Total 374
ETS SIPa: VOIP SIP UA CONF_UA 237 1 LAN
PR CONF_PR 262 1 LAN
RS CONF_RD 31 1 LAN
Total 530
ETS H248a: VOIP Megaco MG   143 1 LAN
MGC   86 1 LAN
Total 229

Clarinet-System configuration

Host Specifications

  • USB interface + Windows 98 / Windows 2000 / Windows XP

Clarinet Specification

  • To run an ETS, only the standard Clarinet RUN-TIME package is required
  • The Clarinet RUN-TIME version should be at least the 10.5 version
  • The Clarinet-profiles are used in User-Program behavior

Interface Under Test Specification

  • The ETS can be run on different types of interfaces supported by CLARINET:
    • Ethernet 10/100

Manager Options

  • The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
  • An access from the Clarinet profile-editor allows to manage directly both configuration files:
    • Test Cases list
    • PICS/PIXIT parameters.

Filter Options

  • Filter includes TTCN functions to select the TTCN-GR trace events
  • Programmable color attribute by type of events (Test-step, Test Case...)

Packaging

ETS

  • All ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
  • The running of the software is controlled by the Clarinet security-key connected on parallel port
  • The ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

  • The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
  • The TTCN-GR test documentation corresponding to the ATS is available from standard organization.

Ordering Information

Reference

Product Designation

8501

Clarinet-ETS H225a: VOIP H225

8503

Clarinet-ETS 889-3a: VOIP H248-Megaco

8504

Clarinet-ETS RFC3261: VOIP SIP
