Clarinet Run-time: Monitoring PPPoE

From the version 10.2, the Clarinet Run-Time package includes full decoding of PPPoE protocol specified in the RFC.....

Function of the Monitoring

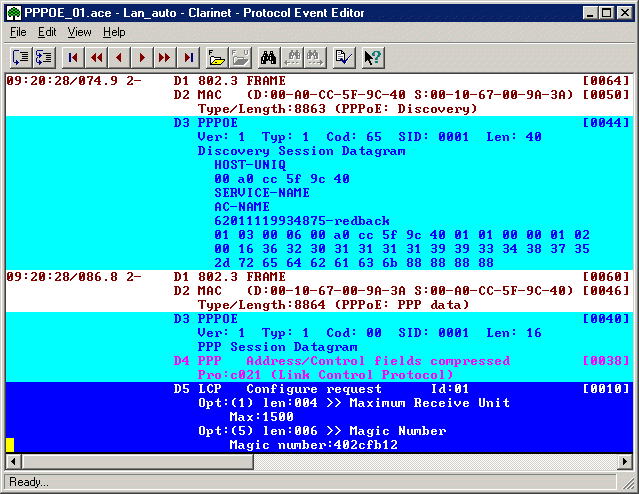

The Clarinet Run-time includes monitoring of PPPOE protocol over Ethernet  interfaces . That function allows to decode a full IP stack using PPPoE at the low layer.

Acquisition of IP protocol events

The Clarinet Event-Editor displays events generated from analysis over the Ethernet interface 802.3.

It includes the three lower layers of protocols. The Layer 2 provides the Type (IP=0800) of Upper layer protocol.

Generation of UDP protocol events

The Clarinet Filter enables the automatic generation of  'protocol events' resulting from decoding/concatenation of IP layer events. The UDP protocol is identified in the IP layer (Pro=06)

The automatic port detection over UDP enables to decode the DNS protocol (port=00053).

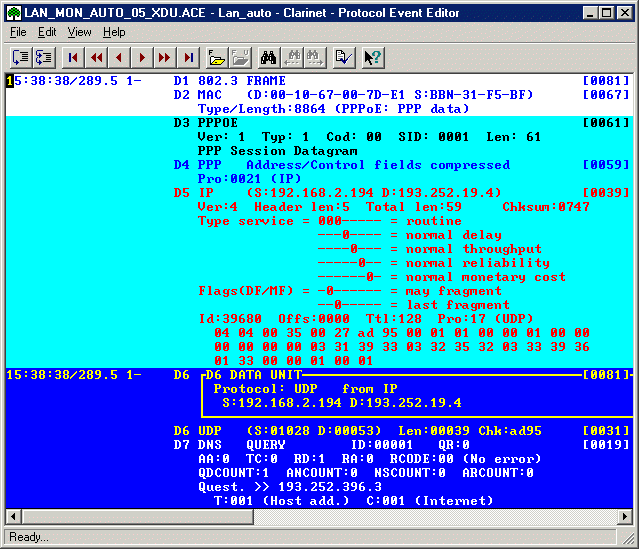

The screen below displays UDP events carrying DNS protocol at layer 7.
