Clarinet SS7: "OverISUP" User-Program

The Clarinet Run-time package includes a template and the executable files allowing to run ISUP simulation in User-Program mode.

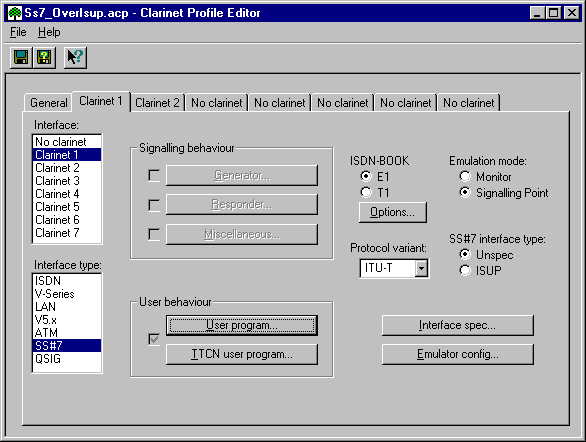

Specification of the User-program profile

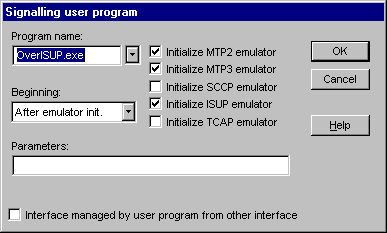

The User-Program uses the stack of protocols defined in the profile specification by 'Emulator Config' access.

The Time-Slot allocated to the SS7 common channel is specified  under the 'Interface Specs/Signaling Link' access.


Running the User-program

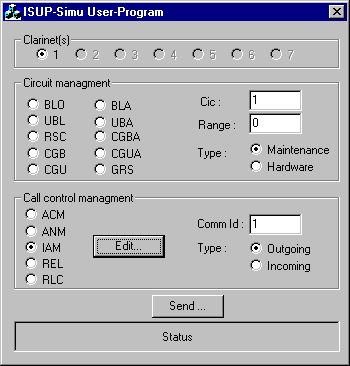

The panel opened by the User-program allows to dynamically send commands to the interface
  • Circuit management applied to one circuit or a group of circuits
  • Call control management by sending messages corresponding to different Communication Identifiers

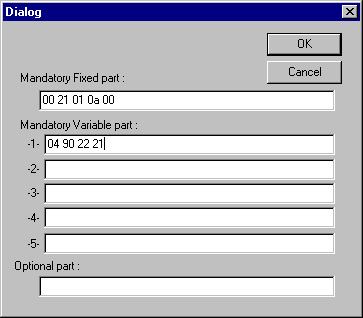

Each of the messages can be configured in hex entry (Copy/Paste allowed)

The value is saved at the end of execution as a default value.
