Clarinet MAP monitoring

The Clarinet Run time Version 10.4 allows to decode the GSM MAP2 and MAP2+ protocols.

• Functions of the program
• Generation of SS7 events
• Decoding of MAP2 protocol

Functions of the program

The specifications of GSM MAP and MAP2+ are published by ETSI. The implementation of the decoding refers to the folowing documents:

• MAP2 : ETS 300 599 - GSM09.02 Version 4.17.1.
• MAP 2+: TS 100 974 - GSM09.02 version 6.2.0


Generation of SS7 events

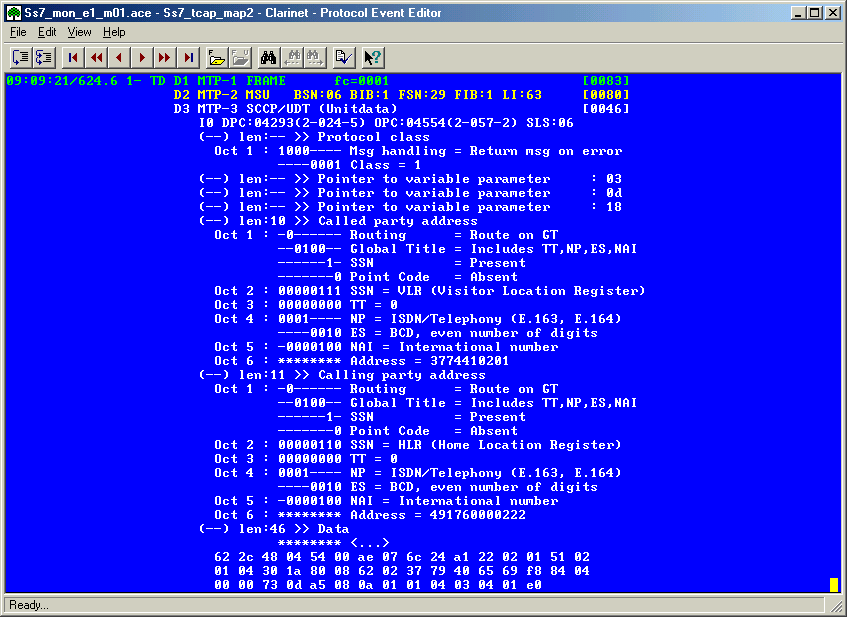

The SCCP messages are decoded over MTP2 and MTP3 stack. The "UnitData" messages include a Data field carrying the MAP protocol

Decoding of MAP2 protocol

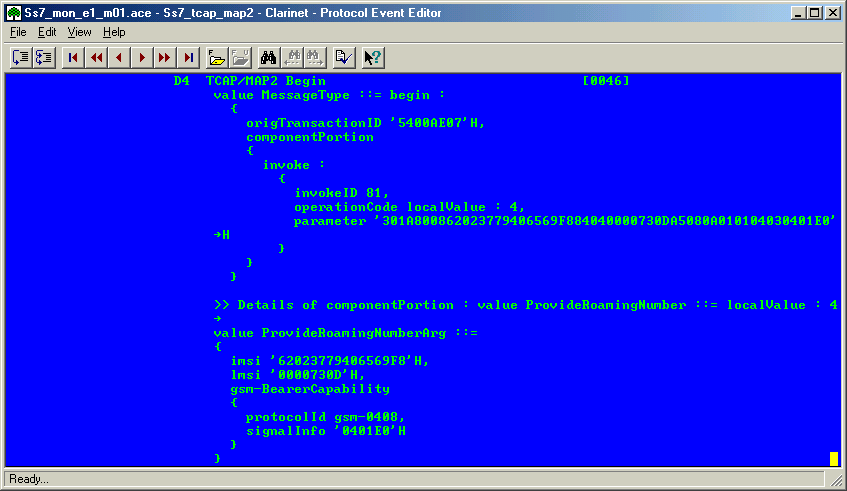

The MAP messages are encoded by using ASN1 rules. Clarinet displays directly the ASN1 content.

---
