Clarinet VOIP: Monitoring SIP, MGCP & MEGACO

From the version 10.4, the Clarinet Run-Time package includes monitoring of protocols such as SIP, MGCP and H248 which completes the set of Voice-Over IP protocols supported by Clarinet.

Function of the Monitoring

The Clarinet Run-time includes Monitoring of SIP, MGCP and H248 protocols over different types of interfaces (Ethernet, E1/T1, ATM, Vseries). New functions have been added to support the decoding of  these protocols specified in RFCs.

Acquisition of IP protocol events

The Clarinet Event-Editor displays events generated from analysis over the Ethernet interface 802.3.

It includes the three lower layers of protocols. The Layer 2 provides the Type (IP=0800) of Upper layer protocol.

Generation of TCP or UDP protocol events

The Clarinet Filter enables the automatic generation of  'protocol events' resulting from decoding/concatenation of IP layer events. The UCP protocol is identified in the IP layer (Pro=17)

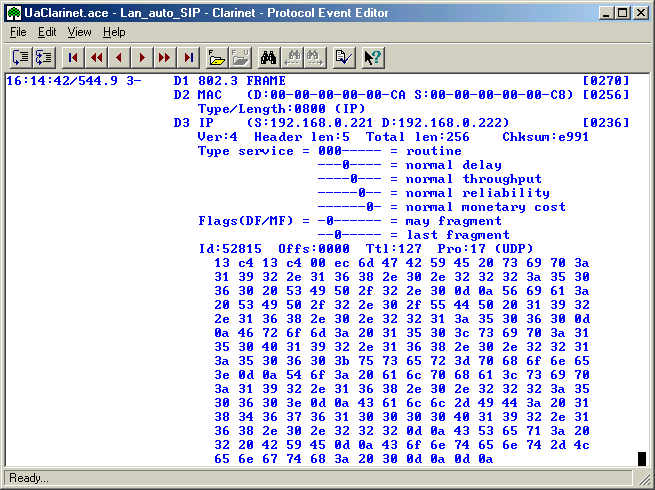

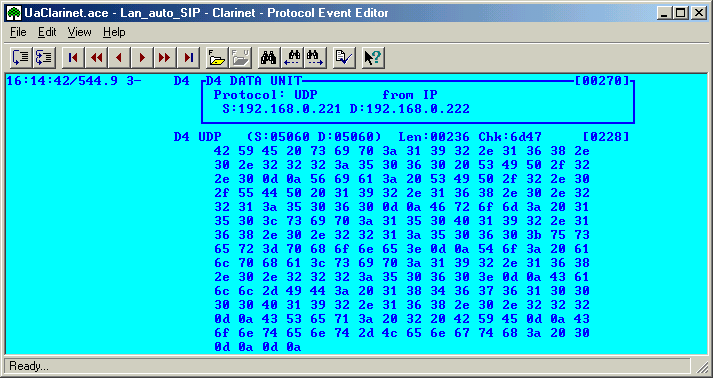

The screen below displays UDP events: Port addresses are fully decoded, data is displayed in hex format.

Generation of UDP protocol events with SIP protocol

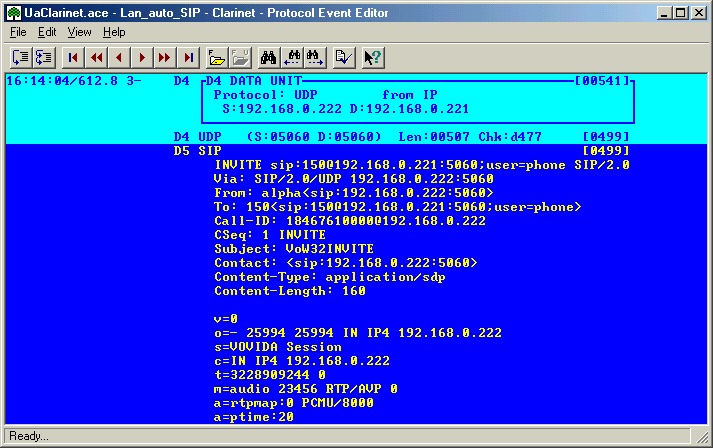

When SIP protocol is specified above UDP in the filter (a template is available, the SIP events are decoded:

Generation of UDP protocol events with MGCP protocol

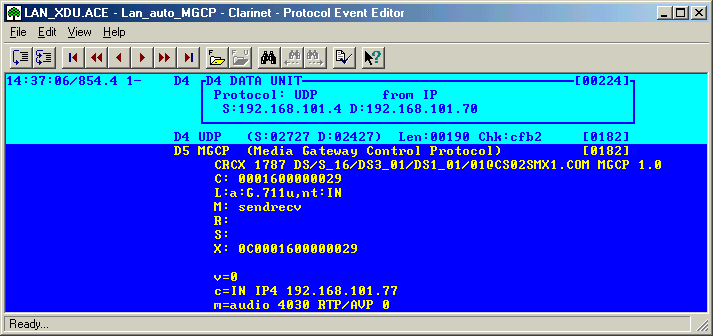

When MGCP protocol is specified above UDP in the filter (a template is available, the MGCP events are decoded:

Generation of UDP protocol events with H248 protocol

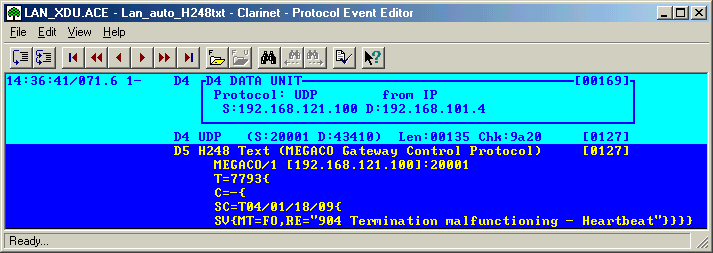

When H248txt  protocol is specified above UDP in the filter (a template is available, the MEGACO events are decoded:

The both option of H248 (text or binary) are available.

Generation of UDP protocol events with RTCP protocol

The Clarinet Filter enables the automatic generation of  'protocol events' resulting from decoding/concatenation of IP layer events. The UDP protocol is identified in the IP layer (Pro=17)

The screen below displays UDP events: header is fully decoded, the upper layer of protocol over UDP (RTP/RTCP) are decoded.

Generation of UDP protocol events with RTP protocol

The Clarinet Filter enables the automatic generation of  'protocol events' resulting from decoding/concatenation of IP layer events. The UDP protocol is identified in the IP layer (Pro=17)

The screen below displays UDP events: header is fully decoded, the upper layers of protocol over UDP (RTP on the below screen) are decoded.

The RTP carries the voice stream in the payload field. The header includes the fields defined in the RTP standard.
