SS7 protocol: E1/T1 link with Dual TS

The Clarinet Run-time package (version 10.2 )  includes an automatic   ISUP simulation over two channels:

E1 interfaces

Specification of the  profile

The SS7 profiles supports two TS's on each E1/T1 link in monitoring and simulation.

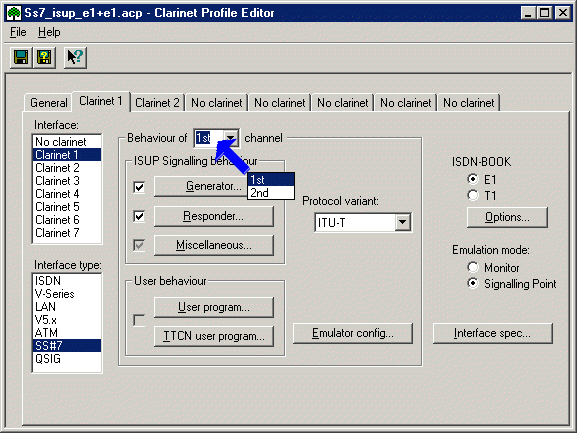

Each of the channels is defined by its own set of  specifications: emulation, simulation behaviour...

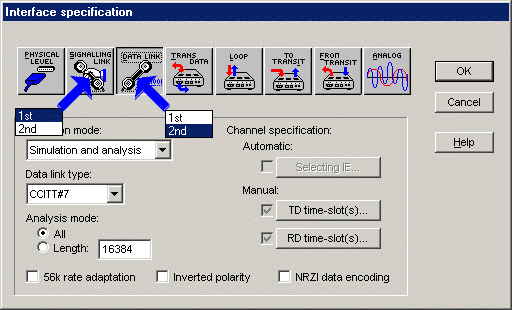

Each of the TS's is defined in the common panel 'Interface Specs:

  • the channel C1 corresponds to Signalling Link
  • the channel C2 corresponds to Data Link
