Clarinet  TTCN-HTML Display

Function of the program

The Clarinet TTCN-HTML Tools  allows to split a TTCN ATS into html pages:

  • to view them with any HTML Explorer
  • to jump directly from the event-Editor

Installation of the ETS

The booklet inserted in the CD-ROM media explains how to install the ETS.

The ETS Installation procedure creates a directory dedicated to each ETS under \claets.

The HTML pages are located in the Defs sub-directory of each ETS directory.

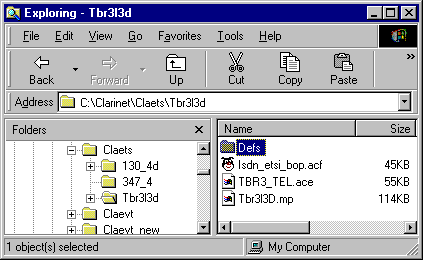

The picture shows the Defs sub-directory installed in Claets\Tbr3l3d directory.

The ETS packages delivered on the Clarinet ETS CD-ROM include the Defs directory only for the latest test suites which have been developed. For the eldest, the user has to add manually the defs directory.

Generation of the HTML pages

The generation of the Html pages imports the TTCN source file in TTCN MP format.

The Defs subdirectory is automatically created in the directory where is located the mp source file.

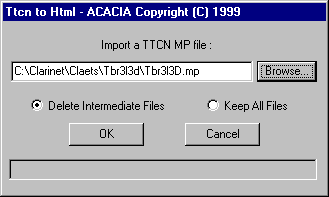

The picture shows the panel to launched the import of  Tbr3l3d.mp file.

Jumping from Clarinet Event-Editor to HTML pages

The Clarinet Event-Editor displays the TTCN traces which are merged with the protocol events when   executing of the ETS.

By clicking the right button of the mouse, a Go To... command is available to jump to the TTCN definition selected on the Event-Editor screen.

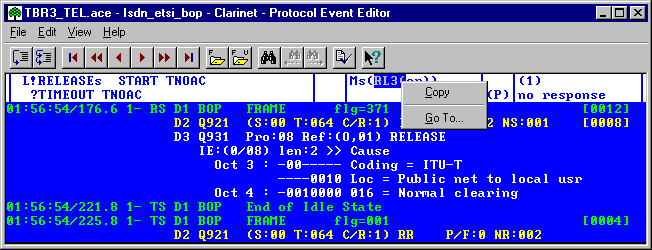

The picture shows the Clarinet Event-Editor and the way to display the RL3 constaint.
