Events: Ethernet/802.3

	Event Structure	What is an Ethernet/802.3 event ?...
	Ethernet/802.3 decoding	by using Clarinet Event-Editor with a filter ...
	Protocol stack	Which protocol specifications to be defined in the current filter ?...
	Standards	IEEE 802.3
	Options	Changing the display conditions in the current filter ?...

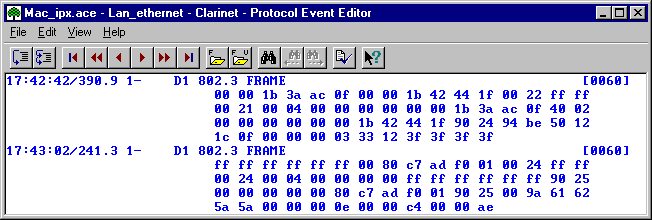

Clarinet Event-Editor: Ethernet/802.3 decoding

	Event information	Date	Date of the event (end of Ethernet/802.3 frame) in the format: hh:mm:ss/xxx.y
		N	The interface number which identifies the Clarinet-interface connected to the host.
		D1	The decoding level as specified in the filter (protocol stack).
	Protocol fields	802.3	<Ethernet/802.3 type>    [nnnn]
	Data field	Field of the conveyed data, displayed if no upper layer of protocol has to be decoded. The display mode can be Hexa, Ascii or Ebcdic as specified in the filter.

Ethernet/802.3 Protocol fields

	<Ethernet/802.3 type>	Frame: Valid frame with correct CRC calculation result. Err E0: overrun. Err E1: no resources. Err E2: alignment error. Err E3: CRC error. Err E4: length error. Err E8: collision. Err E9: does'nt match IA. Err E13: truncated frame. Err E14: no EOP flag. Err E15: frame too short.
	[nnnn]	The number of octets of the information field. The length does not include the 2-octet CRC.

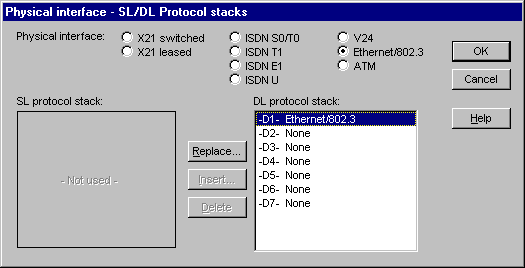

Protocol stack applied
