Events: Novell IPX

	Event Structure	What is an Ethernet/802.3 event ?...
	IPX decoding	by using Clarinet Event-Editor with a filter ...
	Protocol stack	Which protocol specifications to be defined in the current filter ?...
	Standards	Novell
	Options	Changing the display conditions in the current filter ?...

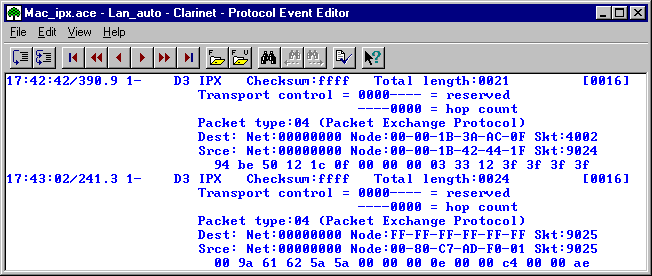

Clarinet Event-Editor: IPX decoding

	Event information	Date	Date of the event (end of Ethernet/802.3 frame) in the format: hh:mm:ss/xxx.y
		N	The interface number which identifies the Clarinet-interface connected to the host.
		Dx	The decoding level as specified in the filter (protocol stack).
	Protocol fields	IPX	Ctrl    [nnnn]
	Data field	Field of the conveyed data, displayed if no upper layer of protocol has to be decoded. The display mode can be Hexa, Ascii or Ebcdic as specified in the filter.

IPX Protocol fields

	Ctrl	in the format presenting the different fields in sequence.
	[nnnn]	The number of octets of conveyed data.

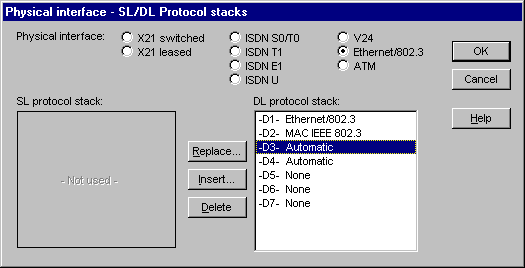

Protocol stack applied
