Events: V5-DL

	Event Structure	What is a BOP event ?...
	V5-DL decoding	by using Clarinet Event-Editor with a filter ...
	Protocol stack	Which protocol specifications to be defined in the current filter ?...
	Standards	ETSI ETS 300 324 for V5.1 ETSI ETS 300 347 for V5.2
	Options	Changing the display conditions in the current filter ?...

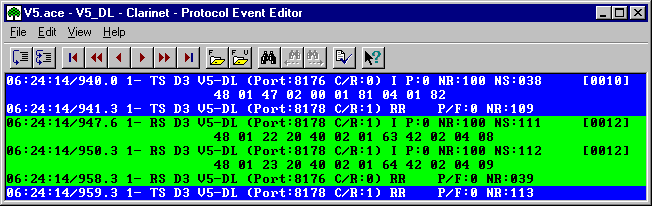

Clarinet Event-Editor: V5-DL decoding

	Event information	Date	Date of the event (end of BOP frame) in the format: hh:mm:ss/xxx.y
		N	The interface number which identifies the Clarinet-interface connected to the host.
		Link type	TS: Signalling Link  Transmit direction RS: Signalling Link Receive direction TD: Data Link Transmit direction RD: Data Link Receive direction
		Dx	The decoding level as specified in the filter (protocol stack).
	Protocol fields	V5-DL	(Address) <PDU type> Ctrl    [nnnn]
	Data field	Optional field of the conveyed data, displayed if no upper layer of protocol has to be decoded. The display mode can be Hexa, Ascii or Ebcdic as specified in the filter.

V5-DL Protocol fields

	(Address)	Address field in the format (Port:xxxx C/R:x) :
	Port:xxxx	Port number.
	C/R:x	C/R bit value (0 or 1).
	<PDU type>	Type of frame.
	Ctrl	Control field in the format P/F:x NR:xxx NS:xxx :
	P:x or P/F:x	value of P or P/F bit (0 or 1).
	NR:xxx	value of NR (sequence Number Received).
	NS:xxx	value of NS (sequence Number Sent).
	[nnnn]	Length of the data field.

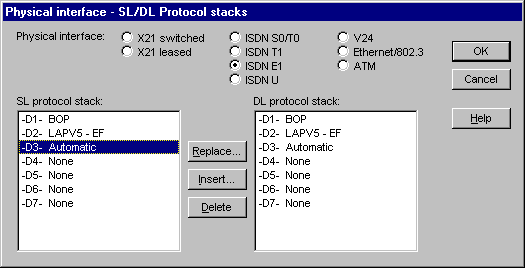

Protocol stack applied
