E1 or T1 - RJ45 - Network / LE simulation

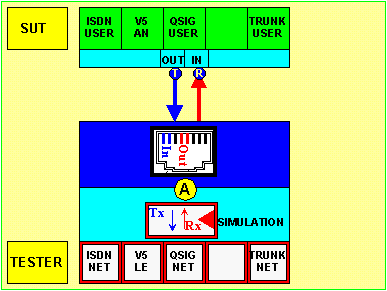

Directions of signal:

T: Transmitted by User
(or V5-AN)

R: Received by User
(or V5-AN)

The profile includes the following options of PRI interface:

  • Extremity connection mode

The interface signals T and R are synchronized

  • on the internal clock
  • on the external clock restored using the signal from the User (current interface selection)
  • on the external clock restored using the signal transmitted by a PRI interface connected to the TRANSIT input.
