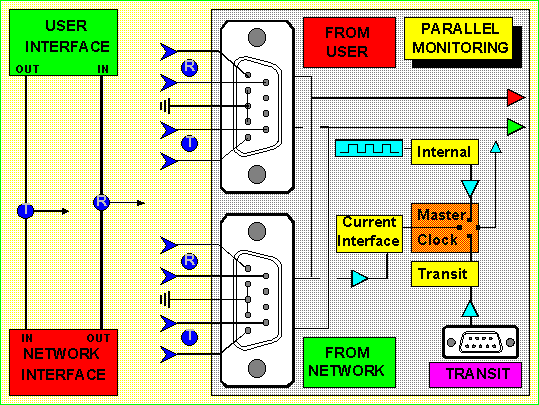

E1 or T1 (ISDN-PRI, Trunk, V5, SS7) - SUB-D09 - Parallel Monitoring



Directions of signal:

T: Transmitted from Terminal

R: Reiceived by Terminal
Any of FROM USER or FROM NETWORK connectors can be used.

The profile includes the following options of PRI interface:

  • Extremity connection mode
  • High impedance inputs

This connection type enables observation on an E1 or T1 interface without cutting off the link.

The following limitations are to be taken into account:

  • the cable must be less than 0.5 meter long.
  • the signal level must be greater than -6dB.
