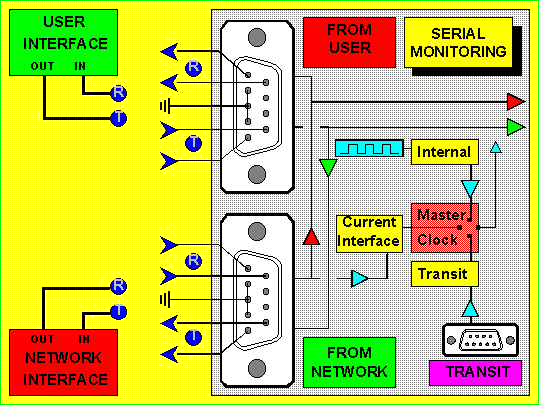

E1 or T1 (ISDN-PRI, Trunk, SS7, V5) - SUB-D09 - Serial Monitoring



Directions of signal:

T: transmitted from Terminal

R: Reiceived by Terminal

Both FROM NETWORK and FROM USER connectors have to be used.

The profile includes the following options of PRI interface:

  • Drop and insert connection mode
