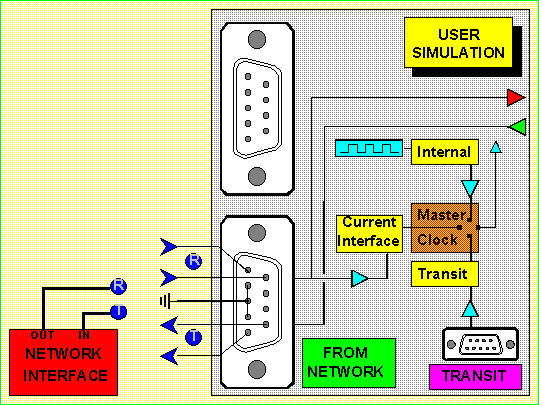

E1 or T1 (ISDN-PRI, Trunk, SS7, V5) - SUB-D09 - User / SIG Point / AN simulation



Directions of signal:

T: transmitted from Terminal

R: Reiceived by Terminal

The profile includes the following options of PRI interface:

  • Extremity connection mode

The interface signals T and R are synchronized

  • on the internal clock
  • on the external clock restored using the signal from the network (current interface selection)
  • on the external clock restored using the signal transmitted by a PRI interface connected to the TRANSIT input.
