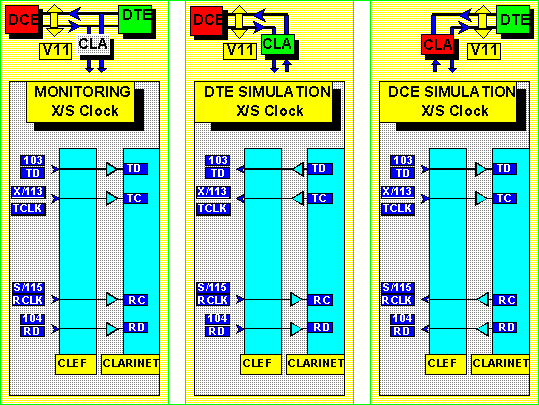

V11/X24 and X/S clock



Directions of signal:

X: Transmitted from Terminal

S: Received by Terminal

 X/S selected in Interface specs / Physical level of the profile

The interface signals T is synchronized on the X clock signal provided by DTE.
