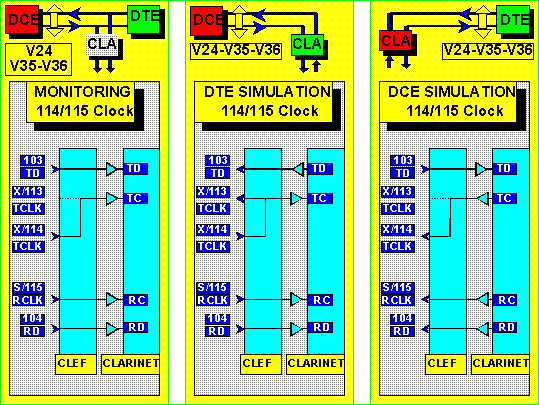

V24/V35/V36 and 114/115 clock



Directions of signal:

114: Received by Terminal

115: Received by Terminal

114/115 selected in Interface specs / Physical level of the profile

The interface signal 103 is synchronized on the 114 clock provided by DCE.
