• place the Clarinet ETS disc in the CD-ROM drive
• use the File manager or the Start menu (Run) to run setup.exe which is located in the directory Tools\Acttcn\Disk1

Setup takes you through a series of dialog boxes that prompt for setup information (directory  Clarinet).

This function allows to import a test suite under MP format. The suite is splitted into elementary tables in html format. Each of the single table can be edited by using an html explorer (such as Microsoft Internet Explorer 4.0, Netscape 4.0).

This Clarinet TTCN translator is provided as a free package to help the Clarinet customer to view the ATS file when they are analysing the results of ETS   execution.

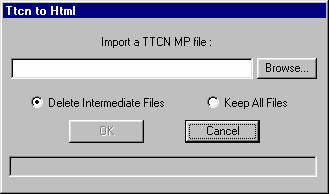

The mp file name is entered with the Browse function. The progression of import processing is indicated in the status bar.

The import operation create automatically a directory 'Defs'   including all the html filesat the same level than the mp file.

The following sub-directories are created in the defs directory:

• StructTypeDefs

• TTCN_ASP_TypeDefs

• TTCN_PDU_TypeDefs

• StructTypeConstraints

• TTCN_ASP_Constraints

• TTCN_PDU_Constraints

• TestCases

• TestStepLibrary

• DefaultsLibrary

The following files are created in the origin directory of the MP file:

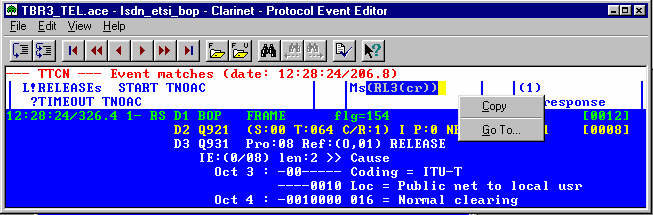

When the directory 'defs' is installed in an ETS directory, the Clarient Event-Editor allows to automatically jump to the HTML page.

By selecting the TTCN item and clicking on the right button of the mouse, the 'Goto' link to html appears.

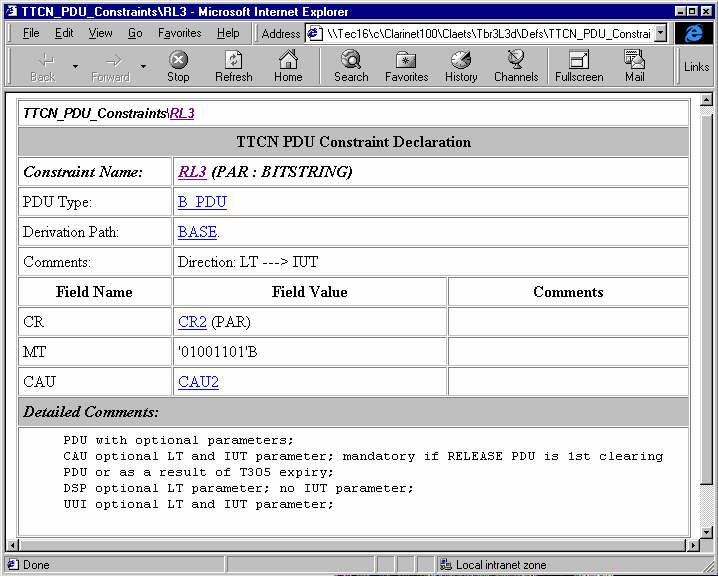

Sample of TTCN-html display

When the directory 'defs' is installed in an ETS directory, the Clarient Event-Editor allows to automatically jump to the HTML page.

Links to the different html  pages are automatically generated  by the Acacia TTCN viewer.
