Event structure: native Asynchronous
|
Event Structure
|
What is an Asynchronous event ?...
|
 |
|
native Asynchronous display
|
by using Clarinet Event-Editor without any filter
...
|
|
|
Asynchronous decoding
|
by using Clarinet Event-Editor with a filter ...
|
 |
|
Standards
|
|
|
The Asynchronous events are generated by the analysis process from the SL or DL link
when the data structure is based on asynchronous characters.
The binary event structure is defined in the Clarinet-API.

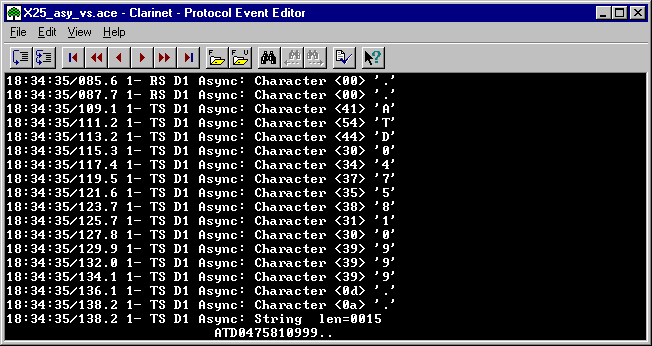

Clarinet Event-Editor: native Asynchronous display
The edition of the Asynchronous events without any decoding/formatting allows to
display the contents of the differents fields:
|
Event information
|
Date
|
Date of the event in the format: hh:mm:ss/xxx.y |
|
N
|
The interface number which identifies the
Clarinet-interface connected to the host. |
Link type
|
- TS: Signalling Link Transmit
direction
- RS: Signalling Link Receive direction
- TD: Data Link Transmit direction
- RD: Data Link Receive direction
|
D1
|
The decoding level as specified in the filter (protocol
stack). |
|
Protocol fields
|
Async
|
<Async type> Content |
|
|
Data field
|
For a string event, characters of the
string, displayed in ASCII. |
|
|
<Async type>
|
- Character.
- Character String: as the series of the previous characters on the same direction, ended
by the delimiter characters defined within the profile (End of strings
rubric).
- Beginning of break (character with Start Bit, Data Bits, Parity Bit,
and Stop Bits equal to 0).
- End of break (on reception of the first one).
|
|
Content
|
Event content in the format <xx>
'y' for a character
or len=zzzz for a character string : |
|
<xx>
|
Character in hexadecimal mode. |
|
'y'
|
Character in ASCII mode. |
|
len=zzzz
|
Length of the character string. |
|
