Events: BYTE-TS

Event Structure What is a BYTE-TS event ?...

BYTE-TS decoding by using Clarinet Event-Editor with a filter ...

Protocol stack Which protocol specifications to be defined in the current filter ?...

Standards
  • G711, ...


Options Changing the display conditions in the current filter ?...

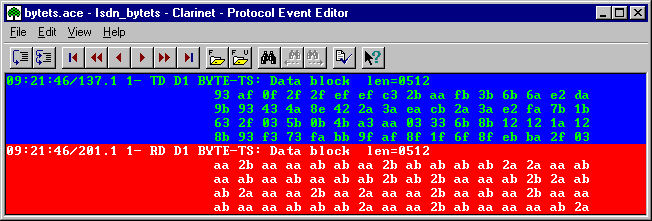

Clarinet Event-Editor: BYTE-TS decoding


Event information Date Date of the event (end of data block) in the format: hh:mm:ss/xxx.y
N The interface number which identifies the Clarinet-interface connected to the host.
Link type
  • TD: Data Link Transmit direction
  • RD: Data Link Receive direction
D1 The decoding level as specified in the filter (protocol stack).

Protocol fields BYTE-TS <BYTE-TS type> <length>

Data field Octets of the data block are displayed according to the format specified in the filter.

BYTE-TS Protocol fields

<BYTE-TS type>
  • Data block.
<length> Length of the data block.

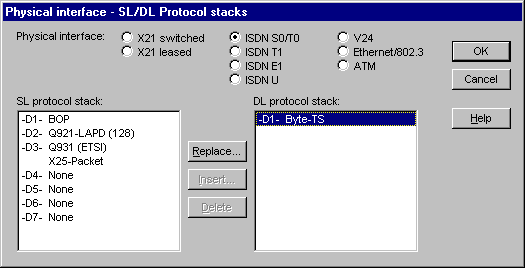

Protocol stack applied
