Events: ISDN BRI (S0/T0)

	Event Structure	What is ISDN BRI S0/T0 physical event ?...
	PH decoding	by using Clarinet Event-Editor with a filter ...
	Protocol stack	Which protocol specifications to be defined in the current filter ?...
	Standards	ITU Recommendation I430
	Options	Changing the display conditions in the current filter ?...

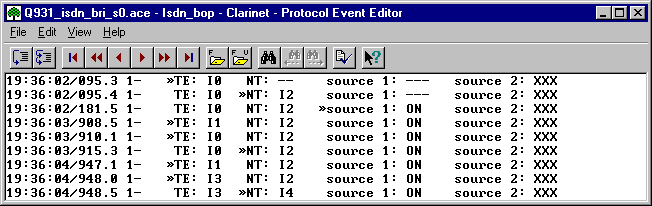

ISDN BRI S0/T0 physical layer decoding

	Event information	Date	Date of the event in the format: hh:mm:ss/xxx.y
		N	The interface number which identifies the Clarinet-interface connected to the host.
		Link type	TE: terminal side NT: network side
	Protocol fields	State	<TE Info> <NT Info> <source 1> <source 2> The "»" mark indicates the item which undergoes a state transition.

PH-ISDN BRI (S0/T0) Protocol fields

	<TE Info>	Type of the information signal (I0 to I4) from TE to NT detected on the S/T Bus.
	<NT Info>	Type of the information signal (I0 to I4) from NT to TE detected on the S/T Bus.
	<source 1>	State of  the phantom power supply.
	<source 2>	State of  auxiliary power supply.

Protocol stack applied

Native ISDN BRI S0/T0 event

The ISDN BRI S0/T0 physical events are generated by the analysis process on the PH link when the physical interface type is based on ISDN BRI S0/T0. Every transition of state of the physical interface (INFO signals, power supply) generates an event.

The binary event structure is defined in the Clarinet-API.

The edition of the ISDN BRI S0/T0 physical events without any decoding/formatting allows to display the successive states of the physical interface.
