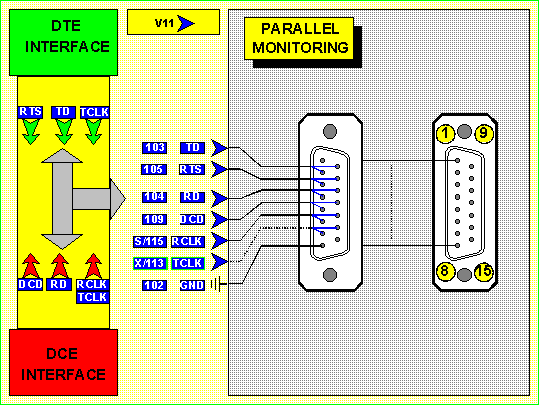

V11/X24 - Parallel Monitoring



Directions of signal:

T: transmitted from Terminal

R: Received by Terminal

 Both X24/V11 connectors have the same signals.
Connexion can be done by using an 'Y cable' on one connector or two cables on the two connectors (recommended for high speed).
