V24 - DTE simulation

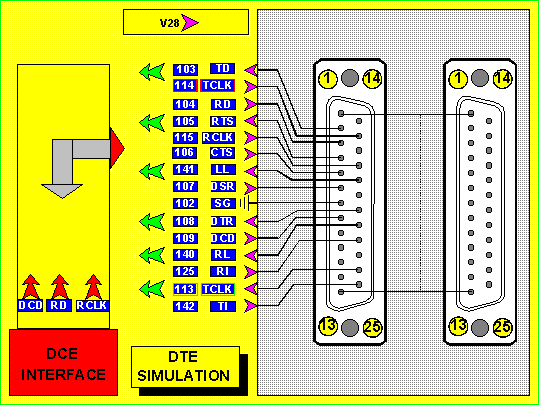

Directions of signal:

T: transmitted from Terminal

R: Received by Terminal

Both V24 connectors have the same signals.
