Connections: TRANSIT - Interface signals

TRANSIT - Interface signals

Pin
1
2
3
4
5
6
7
8
9

Signal
OUT Ring (R)
NC
NC
NC
IN Ring (T)
OUT Tip (R)
NC
NC
IN Tip (T)

(NC = not connected)
(- <=> Ring + <=>Tip)

Signal
IN Ring
IN Tip
NC
OUT Ring
OUT Tip
NC
NC
NC

(NC = not connected)
(- <=> Ring + <=>Tip)

Pin
1
2
3
4
5
6
7
8

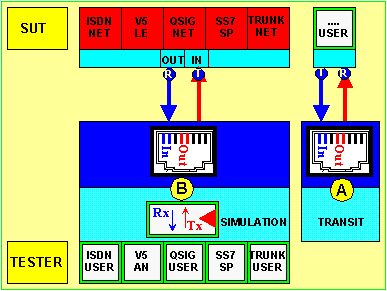

Transit is available on port A if Clarinet works in User (or V5-AN, SS7-SP) emulation mode and Extremity connection mode.

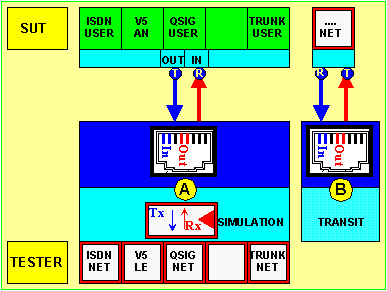

Transit is available on port B if Clarinet works in Network (or V5-LE) emulation mode and Extremity connection mode.

Characteristics	Standards
Functional	The Current Interface and TRANSIT interface share a common type (E1 or T1) and common Options on the Clarinet-Book USB: PCM Trunk-CEPT-32TS - ITU G704/I431 recommendations. PCM Trunk-24TS - ITU G704/I431 recommendations.
Electrical	PCM Trunk-CEPT-32TS - ITU G704/I431 recommendations. PCM Trunk-24TS - ITU G704/I431 recommendations.
Mechanical	"ISO-8877 modular plug" 8-pin RJ45 socket.

Characteristics	Standards
Functional	E1/Trunk-CEPT-32TS - ITU G704/I431 recommendations The TRANSIT is configurated as a Network side.
Electrical	E1/Trunk-CEPT-32TS - ITU G703/I431 recommendations.
Mechanical	ISO 4903 9-pin SUBD socket.
