How to connect U & S/T interface to Clarinet USB BRI

Rules of wiring

  The interface between the "User" and the "Network" over a U-2B1Q interface is defined for a pair signal.

The interface between the "User" and the "Network" over a S0-T0  interface is defined for two pair signals.

  • T: Transmit direction
  • R: Receive direction

Both directions refer to the User side. Pin allocation is defined over the RJ45 connector.

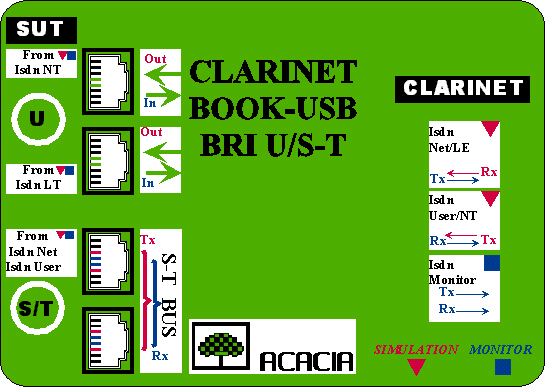

The label at the top of the Clarinet-Book U& S/T displays wiring and logical functions.
