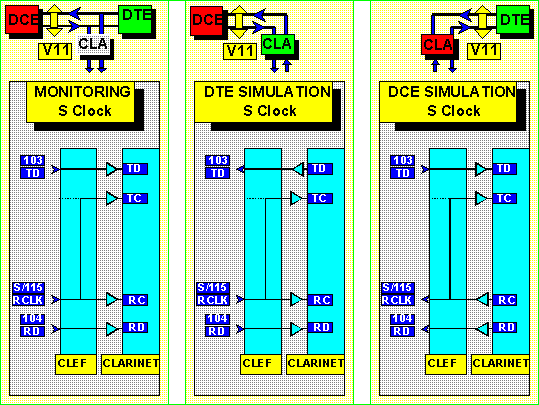

V11/X24 and S clock



Directions of signal:

S: Received by Terminal

S selected in Interface specs / Physical level of the profile

The interface signals T and S  are synchronized on the S clock signal provided by DCE.
