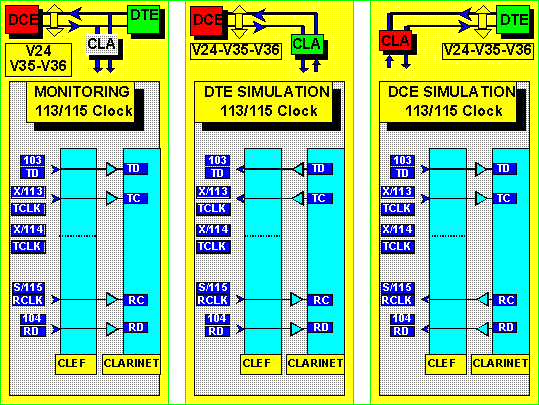

V24/V35/V36 and 113/115 clock




Directions of signal:

113: Transmitted from Terminal

115: Received by Terminal

113/115 selected in Interface specs / Physical level of the profile

The interface signal 103 is synchronized on the 113 clock provided by DTE.
