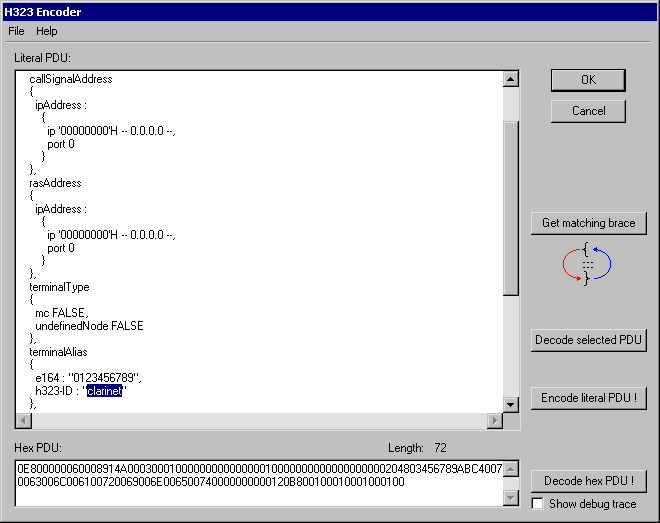

IP profile editor: H323 Encoder
Literal PDU
|
Set of lines which can be edited in ASN1 notation,
according to the syntax of the literal form of the PDU type in use.
The Copy/Paste functions can be used, to import, export, duplicate...
The content can be automatically re-generated from the Hex PDU.
It can include an hexa sequence, followed by its significant decoding
including lines beginning with '--'. |
 |
Hex PDU:
Length:
|
Sequence of octets in hexadecimal form, whose length is
displayed.
The Copy/Paste functions can be used, to import, export, duplicate...
The content can be automatically re-generated from the Literal PDU. |
|
Get matching brace
|
To find the paired braces (successively opening and
closing one). |
|
Encode literal PDU
|
To encode and generate the Hex PDU
content from the Literal PDU. |
|
Decode hex PDU
|
To decode and generate the Literal PDU
content from the Hex PDU according to the choosen PDU type.
If any error, the PER display format is used. |
|
Decode selected PDU
|
Within the Literal PDU content, the
highlighted hexa sequence will be decoded in a secondary H323 Encoder window according to
the choosen PDU type.
If any error, the PER display format is used. |
|
Show debug trace
|
Option to use the PER display format when applying decode
hex PDU. |
|
No
|
The ASN1 notation is used if not any decoding error. |
|
Yes
|
The PER display format is used. |
|
Choice of PDU type for decoding

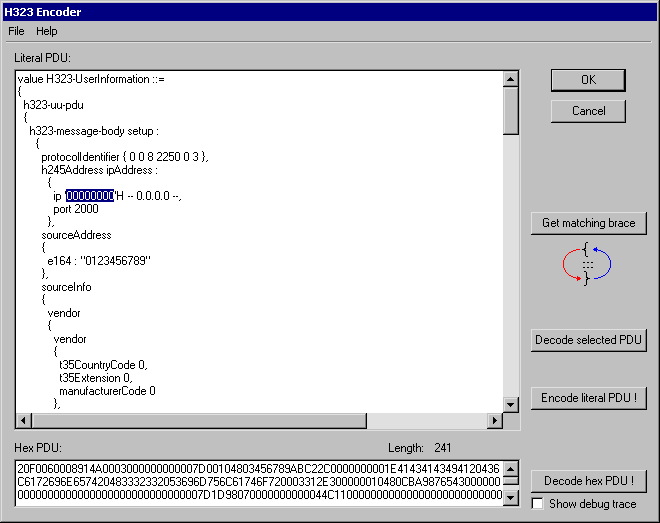

The Clarinet emulator own IP address will be automatically put in place of the IP
address value '00000000'H (as 0.0.0.0).
IP address can be modified to a different value, which will be kept unchanged.

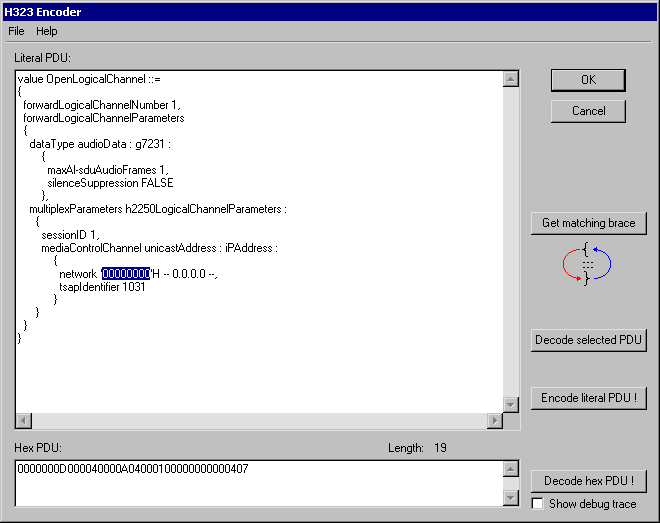

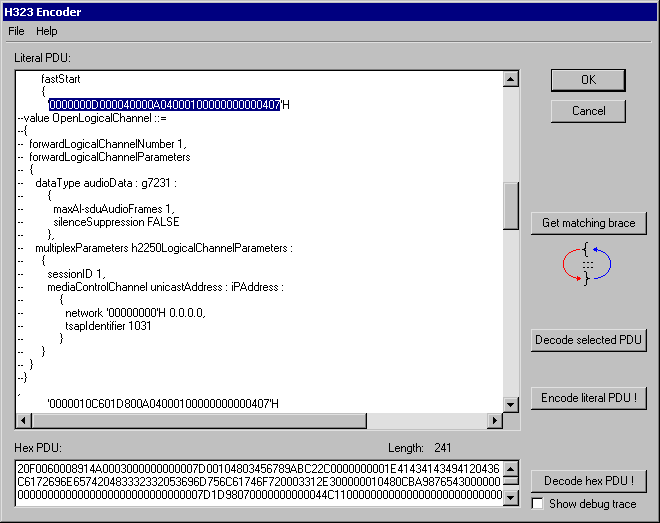

The highlighted hexa sequence can be decoded in a secondary H323 Encoder window
according to the OpenLogicalChannel PDU type.
The Clarinet emulator own IP address will be automatically put in place of the IP
address value '00000000'H (as 0.0.0.0).
IP address can be modified to a different value.
If any modification, the ASN1 content must be re-encoded by Encode literal PDU
before Ok.
|
