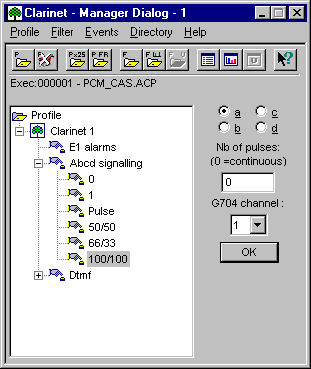

Manual commands: G704 CAS abcd with fixed pulses

Manual commands. The simulation commands on abcd signalling can be used if the profile includes specifications of abcd signalling mode for PRI EI or T1.

Signalling bit. A signalling bit MUST be selected.

Nb of pulses. Number of pulses which can be launched in sequence.

G704 channel. A channel number MUST be selected in the choice list.

OK. This command causes the launching of a series of calibrated pulses (state 1 for a duration in ms followed by state 0 for an other duration, 50/50, 66/33 or 100/100).
