Event information |
Date |
Date of the event (end of BOP frame) in
the format: hh:mm:ss/xxx.y |
|
| N |
The interface number which identifies the
Clarinet-interface connected to the host. |
| Link type |
- TS: Signalling Link (C-channel
TS16) Transmit direction
- RS: Signalling Link (C-channel
TS16) Receive direction
- TD: Data Link (C-channel TS15)
Transmit direction
- RD: Data Link (C-channel TS15)
Receive direction
|
| Dx |

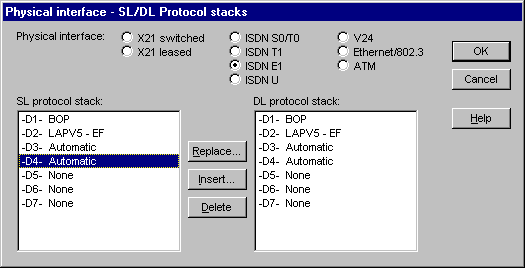

The decoding level as specified in the
filter (protocol stack). |
|
Protocol
fields |
BOP |
<BOP type> <flag
counter> [nnnn] |
 |
| V5-EF |
(Address) <C-Path type>
[nnnn] |
|
| V5-DL |
(Address) <PDU type> Ctrl
[nnnn] |
|
| V5-L3 |
Pro-Id Reference <C-Path type>
<PDU type> Ctrl |
 |
|
Pro-Id |
Protocol discriminator 48h. |
|
Reference |
User port address, identifier, reference
in the following format: (xxxxx) or (yy,zzzz) |
| |
xxxxx |
User port address, identifier (Link,
C-Channel). |
| |
yy |
AN or LE. |
| |
zzzz |
Reference number. |
|
<C-Path_type> |
Type of C-Path. |
|
<PDU type> |
Type of message. |
|
Ctrl |

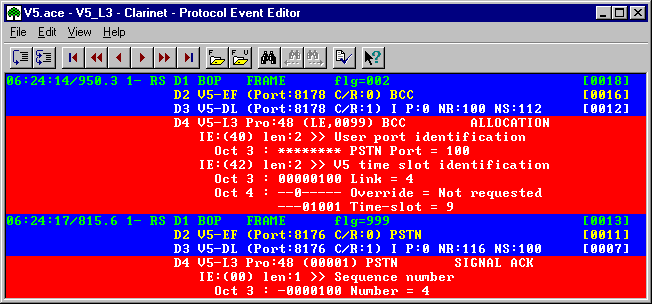

Each IE of the list is displayed,
depending on the display mode selected in the filter :
| Identified mode |
IE:(c/xx)
len:y >> designation
value |
| Detailed mode |
IE:(c/xx)
len:y >> designation
octet 3 : fields
octet i : bjk field
... |
| Data field length = 0 |
no display |
|
| |
c |
Codeset. |
| |
xx |
IE code (octet 1). |
| |
y |
Length of IE content (from octet 3). |
| |
designation |
Designation of IE according to the
standard. |
| |
octet_i:_bjk_field |
Only with Detailed mode,
every field is displayed with its bit configuration within the relevant
octet (from octet 3) and its meaning according to the standard. |
| |
value |
Only with Identified
mode, IE content (from octet 3) in hexadecimal. |
