Events: Classical IP over ATM

Event Structure What is an ATM event ?...

Cl-IP decoding by using Clarinet Event-Editor with a filter ...

Protocol stack Which protocol specifications to be defined in the current filter ?...

Standards
  • RFC 1577


Options Changing the display conditions in the current filter ?...

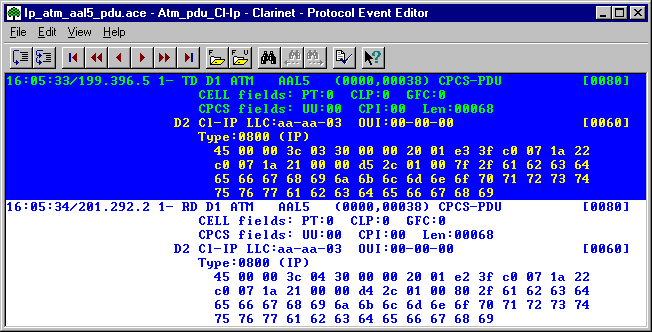

Clarinet Event-Editor: Cl-IP decoding


Event information Date Date of the event (end of cell or PDU) in the format: hh:mm:ss/xxx.yyy.z
N The interface number which identifies the Clarinet-interface connected to the host.
Link type
  • TS: Signalling Link  Transmit direction
  • RS: Signalling Link Receive direction
  • TD: Data Link Transmit direction
  • RD: Data Link Receive direction
Dx The decoding level as specified in the filter (protocol stack).

Protocol fields ATM <AAL type> Ctrl <ATM type>    [nnnn]
CELL_fields
CPCS_fields
Cl-IP Ctrl    [nnnn]
Protype

Data field Field of the conveyed data, displayed if no upper layer of protocol has to be decoded.
The display mode can be Hexa, Ascii or Ebcdic as specified in the filter.


Cl-IP Protocol fields

Ctrl in the format LLC:hh-hh-hh   OUI:hh-hh-hh
(h as an hexadecimal value) :
  LLC:hh-hh-hh The LLC value of 0xaa-aa-03 indicates the presence of a following SNAP header (OUI + protocol identifier).
  OUI:hh-hh-hh The three-octet Organizationally Unique Identifier identifies an organization which administers the meaning of the protocol identifier field which follows.
The OUI value of 0x00-00-00 indicates that the protocol identifier is an ethertype.
[nnnn] The number of octets of conveyed data.

Protype Protocol identifier in the format Type:xxxx (designation) :
  xxxx Ethertype value in hexadecimal.
  designation Designation relating the protocol used within the conveyed data.

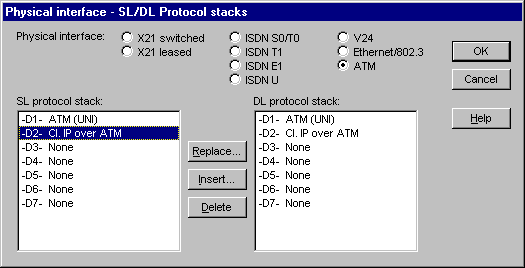

Protocol stack applied
