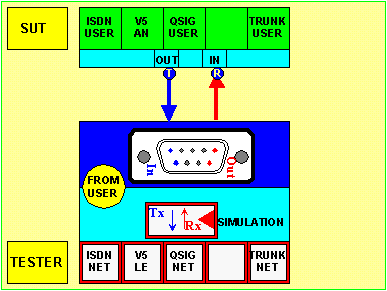

E1 or T1 - SUB-D09 - Network / LE simulation

Directions of signal: T: Transmitted by User (or V5-AN) R: Received by User (or V5-AN)

The profile includes the following options of PRI interface:

• Extremity connection mode

The interface signals T and R are synchronized

• on the internal clock
• on the external clock restored using the signal from the User (current interface selection)
• on the external clock restored using the signal transmitted by a PRI interface connected to the TRANSIT input.
