Clarinet Manager: Manual commands


Profile execution

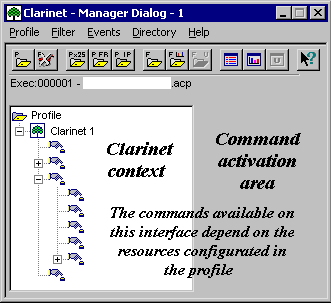

 Immediately after the launching of the profile and until the end of  execution, the window of the Clarinet-Manager Dialog is extended, and the complementary execution dialogue is useful to manage manual commands.

Quit or

To quit the execution of the profile being executed.
This command is useful especially if the profile duration has been specified as infinite.

Execution status

 Execution number and name of the profile being executed.

Profile context

 The profile command context is activated if it is highlighted.

Clarinet i context

 The command contexts or command types, which are accessible under Clarinet i, can be used during the profile execution to launch manual command(s) in relation with a Clarinet interface numbered i.
The highlighted command context or type is the currently activated one.

Command activation area

 A set of edit box(es), selection list(s) and command button(s) can be used depending on the command context or type currently activated.


Clarinet i context

Command context

 Functions or commands.
see operating rules.

Clarinet i

 Measuring clock in any application

Basic access

 Managing ISDN BRI activation

E1 alarms

 Setting ISDN PRI E1 alarms

T1 alarms

 Setting ISDN PRI T1 alarms

Abcd signalling

0, 1

 Simulating G704 CAS abcd

50/50, 66/33, 100/100

 Simulating G704 CAS abcd with fixed pulses

Pulse

 Simulating G704 CAS abcd with pulse specification

Dtmf

DTMF 1 - Dual tone
DTMF 2 - Dual tone

 Generating DTMF dual tone in ISDN application

DTMF 1 - Single tone
DTMF 2 - Single tone

 Generating DTMF single tone in ISDN application

SL - Q931

Call, Clear, Information

 Managing calls with ID value in ISDN Call simu

Clear all

 Causing the clearing of all the ISDN calls in progress.

Miscellaneous
/Restart, /Register

 Sending Q931 Miscellaneous messages according to profile editing.

Miscellaneous
/Others

 Sending Q931 Miscellaneous messages according to profile editing.

SL - QSIG

Call, Clear, Information

 Managing calls with ID value in QSIG Call simu

Clear all

 Causing the clearing of all the QSIG calls in progress.

Miscellaneous
/Restart

 Sending QSIG Miscellaneous messages according to profile editing.

Miscellaneous
/Others

 Sending QSIG Miscellaneous messages according to profile editing.

SL - X25,
DL - X25

Call, Clear

 Managing calls with ID value in X25 Call simu

Clear all

 Causing the clearing of all the X25 calls in progress.

DL - Frame Relay

Call, Clear

 Managing calls with ID value in FR Call simu

Clear all

 Causing the clearing of all the FR calls in progress.

Miscellaneous
/Restart, /Status enquiry

 Sending FR Miscellaneous messages according to FR profile editing.

Miscellaneous
/Others

 PVC activation/ deactivation
BECN/FECN bit set/clear

DL - IP
for IP, TCP-UDP, H323, SIP

Start (or Open,  Call), Stop (or Close, Clear)

 Managing calls (connections) with ID value in IP (or TCP, H323) simulation
for IP, TCP-UDP, H323, SIP

Stop all (or Close all, Clear all)

 Causing the clearing of all the IP connections (or TCP connections, H323 calls) in progress.
  for H323 Miscellaneous Sending H225 Miscellaneous messages (CS, RAS) according to IP/H323 profile editing.
  for SIP Miscellaneous Sending SIP Miscellaneous messages according to IP/SIP profile editing.
  for IP, TCP-UDP, H323, SIP Ping Sending series of Pings according to IP profile editing (ICMP emulator parameters).

DL - Bert

 Managing BERT in ISDN, Vseries application

SL-V5.x

Request V&ID, Restart
PSTN-Clear all
ISDN-Clear all
ISDN-Block, Unblock
Unblock, Block all  ports

 Commands without parameter in V5.x application
See list of used acronyms

Verify reprovisioning
Switch-over to new variant

 Managing Variant ID in V5.x application

Link-ID request, Link Link-Block, Unblock

 Managing Link in V5.x application
See list of used acronyms

Status enquiry

 Managing PSTN/ISDN ports in V5.x application

PSTN-Call, Clear,
PSTN-Block, Unblock, ...

 Managing PSTN ports in V5.x application
See list of used acronyms

ISDN-Call, Clear, Information

 Managing ISDN calls with ID value in V5.x application

ISDN-Clear all

 Managing ISDN calls in V5.x application

ISDN-Miscellaneous
/Restart, /Register

 Sending Q931 Miscellaneous messages according to profile editing in V5.x application

ISDN-Miscellaneous
/Others

 Sending Q931 Miscellaneous messages according to profile editing in V5.x application

Circuits

 Managing state circuits in Vseries application

SL-Sequence
DL-Sequence

 Sending characters in Vseries application

Establish
Clear

 Managing the Vseries communication defined in automatic mode

Simu-ISUP-C1
(channel 1)
Simu-ISUP-C2
(channel 2)

Communications
/Initial address
/Release
Subs. Address

 Managing calls with ID value in SS#7 ISUP Call simu.

Communications
/Miscellaneous
/Suspend, /Resume
/Continuity

 Sending SS#7 ISUP Miscellaneous messages (profile editing) under call state management by the emulator

Miscellaneous

 Sending SS#7 ISUP Miscellaneous messages (profile editing) on CIC without call state management by the emulator

Circuits

 Managing circuits in SS#7 ISUP application
Stop Request on SS#7 ISUP circuit

Circuits group

 Managing circuit group in SS#7 ISUP application
Stop Request on SS#7 ISUP circuit group
Reset circuit group on SS#7 ISUP
  Adsl Line Managing ADSL line
    Status Getting ADSL status
    Test Managing ADSL tests


Operating rules for manual commands

  • It is advised to set the Min duration rubric of the profile at an adequate value to avoid a premature profile end of execution.
  • In case of Call simulation :
    • The manual commands inhibite the repetition mechanism if programmed with the Execution number parameter.
    • The manual commands are applicable on an already sequenced automatic communication. Moreover, the manual commands take priority over the automatic sequencing.
    • The manual command Call is especially applicable if the Starting delay parameters of the call is infinite.
    • The manual command Clear is especially applicable if the Data state duration parameter of the call is infinite.
    • The manual command Information is especially applicable if the Delay between messages parameters of the call are infinite.


List of acronyms

      Command in V5.x application Designation
Link-LBI Link block indication
Link-LBR Link block request deferred
Link-LBRN Link block request non-deferred
Link-LUBR Link unblock request
PSTN-BI PSTN block indication
PSTN-BR PSTN block request
PSTN-UBR PSTN unblock request
ISDN-BI ISDN block indication
ISDN-BR ISDN block request
ISDN-UBR ISDN unblock request
